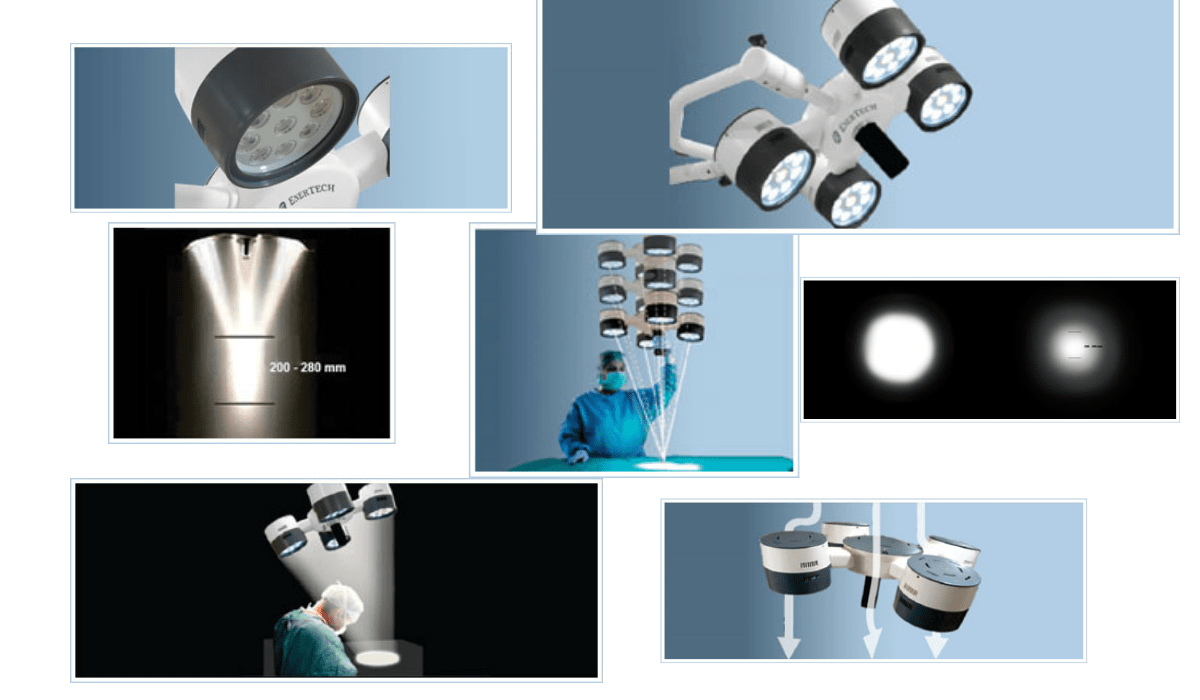

LED Operation Theatre Lights

Description

Features:

Auto Focus

Due to high Focus Co-efficient of LEDs, the beam formation takes place at exactly 1 meter distance. Hence manual adjustment is eliminated; focus can be attained from any convenient angle by simple adjustment of distance of dome from site.

Beam Formation

LED light produces high light intensity across the full illuminate area avoiding the variable contrast lighting and distractions, and offers uniform Vision for working area. Each Reflector generates homogeneous lighting for surface. This creates an ideal depth of illumination, enabling the operator to work without the need to make the readjustments. Traditional Operating Theater lights create a high light intensity by squashing the light flux into the middle of the beam, creating a “hot Spot”. This high contrast ‘hot spot’ gives a very bright centre, leaving the rest of the field relatively dim in-comparison.

Laminar air flow compatibility and Compact design

The open design of the LED lights reduces the Surface area that impedes the flow of air from the air supply ceilings, resulting in a less turbulent flow underneath the light and thus controlling the contamination in the operating room. The shape of  DOME assures the visual comfort and is particularly suitable for Laminar Flows. Lastly its compact design makes the  LED light specifically small, flat and streamlined which in turn gives it s distinctive and justifiably futuristic appearance.

Shadow Free illumination

Shadows exist in surgery, created by surgeon position, surgical team movement, equipment or the depth of a wound. The key is to minimize shadows so a surgeon always has the clearest possible view of the surgical site. LED light insures the relation between light body and light field diameter to perform an optimum illumination of the OT field in terms of area and depth. The reflectors are designed to construct a number of light beams to dissolve the shadows.

Suturing Light for convenient post-operative procedure

When the lights are turned off, a low intensity radiant beam is emitted so that suturing process can be carried out in great comfort and without time delay.

Multi Lens System

Good Visibility and the homogeneous illumination at the surgical site are the key elements during the operation. Therefore LED has design its Multi-lens system based on the individual optical lens principle. Since each LED’s has its own convergent lens, each creates its own light field. It distributes the emitted light volume uniformly in the operating room.

Standard Series

Configuration

                 Nova LED F + F                                        Nova LED Me + Me

               Nova LED – F + Me                                  Nova LED – Me

                 Nova LED – F                                        Nova LED – Me – M

               Nova LED – F – M                                      Nova LED – Ex

Specification

Eco Series

Configuration

                 Eco Line Twin                                          Eco Line

                 Eco Line – M                                             Eco Line – Ex

Specification

Colour Series

Configuration

                    VariCol Twin                                          VariCol – M

                   VariCol

Specification

Advantages of Colour Variable Temperature

• The colour temperature can be varied in multiple steps from 3800 K to 6800 K in steps of 200 K.
• A very wide range of possible 20 options is provided.
• Light with a higher colour temperature improves the ability to concentrate, which allows the surgeons to have optimum visual conditions depending on the extent of perfusion of the surgical sites.
• A better contrast can be achieved by changing the light colour temperature in accordance with the tissue type and the structure of the OT Light Field.

Difference Between Standard Series & Eco Series
