Description
Patient Stretcher Trolley
- Made of Heavy duty Steel duly epoxy powder coated
- Dimensions: 210 L x 75 W cm
- Mattress Platform 192 L x 65 cm
- Height Adjustable: 60 ~ 90 cm
- Patient Trolley is mounted on 200 mm swiveling castors with brake system
- Height adjustable by Hydraulic Pump, adjustable Head Section
- Offers trendenburg and reverse positions by Gas springs.
- Collapsible Safety Side Railing & I.V. Rod can be fit on all four corners.
- Four holder for drainage bags and for restraining belts
- Equipped with Oxygen Cylinder Holder and Tray at base
- Handle Bars on both Side for easy movement
- Supplied with high density 60 mm thick mattress with water resistant cover
- All the four corner of Trolley equipped with protective bumpers.
- Supplied in Assembled Condition.
Patient Recovery Trolley (Four Function – PP)
- Size | 1920 x 650 x 525 to 810mm Ht.
- Four function manual recovery trolley.
- Two section top in PP, back rest adjustable through gas spring.
- Collapsible PP side railing.
- Mounted on 125mm diagonally locking castors.
- All positions attended with the help of heavy screw mechanism.
- Provision for IV rod at all the four corner of the trolley.
- Cylinder cage attached.
- Provided with IV Rod and medicine tray.
- Supply with 25mm thick mattress.
Patient Trolley with Fixed Mattress on Top
- Size: 203 L x 56 W x 82 H cm.
- SS/MS tubing frame work of trolley
- Trolley mounted on 15 cm dia. swivel castors. (Anti static wheels)
- Fixed stretcher on plywood with padded form covered with Rexene.
- Stretcher consisting of back rest.
- Provision of oxygen cylinder
- Supply with MS Railing & IV rod.
- Pretreated and epoxy powder coated.
Stretcher on Trolley with Side Railing
![](https://i0.wp.com/lsptech.tlipng.com/wp-content/uploads/2021/04/5-12.jpg?resize=600%2C600&ssl=1)
- MS tubular pipe framework fitted with MS side railing.
- Dished steel top with SS propelling handles at each end.
- Detachable stretcher top of CRCA sheet supported on tubular frame.
- Mounted on 150mm diameter castor wheels, two with brakes.
- Size : 203L x 60W x 82H cm
Stretcher Patient Trolley with Fixed Mattress Top
- Dimension : 1980L x 570W x 810Hmm
- MS tubular pipe framework.
- Detachable stretcher with fixed mattress top.
- Backrest adjustable on ratchet.
- Provided with collapsible side-railings, IV rod, tray and oxygen cylinder cage.
- Mounted on 150mm diameter castor wheels, two with brakes.
- Finish in epoxy powder coating.
Patient Stretcher With Fixed Mattress Top – SS
- Dimension : 1980L x 570W x 810Hmm
- Stainless Steel tubular pipe framework.
- Removable/detachable stretcher with fixed mattress top.
- Back-rest adjustable on ratchet.
- Provided with collapsible side-railings, IV rod, tray and oxygen cylinder cage.
- Mounted on 150mm diameter castor wheels, two with brakes.
Trauma Care Medicine Trolley (5 Drawer)
- Size | 660 x 485 x 1625 mm
- Five drawer with internal compartments (30 per drawer)
- Compartments made from 5mm thick soft board easily removable.
- Top in 304G stainless steel having 3 sides raised.
- Two lines of flip out bins with transparent front with labelling provision.
- Handle on left to steer the trolley.
- Provided with Dust Bin, Document Holder and telescopic writing pack.
- Cylinder cage provided with can slide down under the trolley.
- When not in use and also optimize the working space.
- Telescopic IV attachment provided.
- Monitor tray on top in SS deep.
- Mounted on 100mm non rusting castors two with brakes.
- Pre-treated and epoxy powder coated.
- Also available complete in stainless steel version.

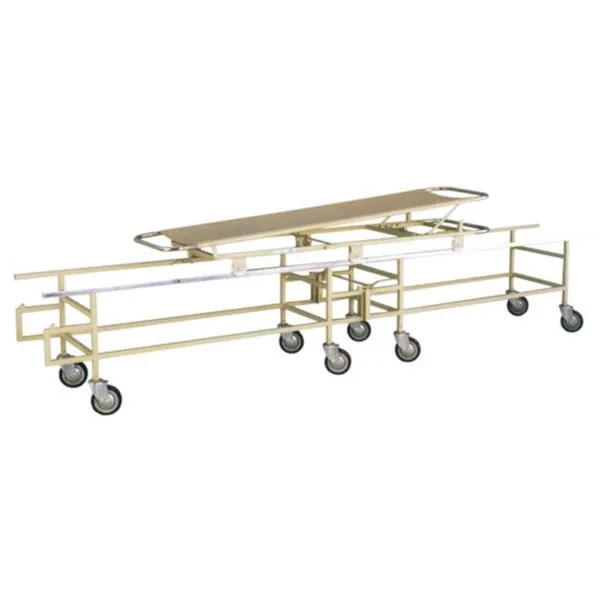

Transfer Trolley System
- Size | 2130 x 610 x 810mm
- Stretcher top transferable on two different under carriages.
- Top rolls over on either trolley with help of rollers.
- Provided with locking mechanism once top crosses over.
- Top made from CRCA sheet with tubular ERW tube.
- Mounted on 200mm diagonally locking castors plate type.
- Pre-treated and epoxy powder coated.
- Optionally available with Cylinder cage, Medicine tray and railing.
- Also available complete in stainless steel version.
Fresh and Soiled Linen Trolley
- Size | 460 x 1090 x 890mm Ht.
- Rectangular trolley complete stainless steel.
- Shelves made from 1mm thick stainless steel.
- Railing on three side of each shelf and top.
- Vertical section made of SS tube.
- Mounted on 100mm non rusting castors two with brakes.
- Linen trolley with horizontal supports in tube with bag.
Jumbo Cylinder Trolley
- Cylinder Trolley is Tubular MS frame work
- Fitted with 200mm dia revolving wheel with ball bearing.
- Legs fitted with nylon feet with metal inserts.
- Pretreated and epoxy powder coated.
Emergency Drug Trolley
Emergency Drug Trolley (30 Bins)
- Size | 460 x 510 x 1000mm Ht.
- Three drawer on heavy duty telescopic channels.
- Space behind the top bins for bulk storage.
- Top five rows multicoloured with 6 compartments in each row.
- Handle on rear to steer the trolley.
- Mounted on 100mm non rusting castors two with brakes.
- Pre-treated and epoxy powder coated.
Emergency Drug Trolley (50 Bins)
- Size | 760 x 510 x 1000mm Ht.
- Three drawer on heavy duty telescopic channels.
- Space behind the top bins for bulk storage.
- Top five rows multicoloured with 10 compartments in each row.
- Handle on rear to steer the trolley.
- Mounted on 100mm non rusting castors two with brakes.
- Pre-treated and epoxy powder coated.
Cylinder Trolley
- Tubular structure 25.4mm dia, 1.25mm thick tube.
- Legs fitted with nylon feet with metal inserts.
- Mounted on 100mm dia revolving wheels.
- Pre-treated and epoxy powder coated.
- Also available complete in stainless steel version.
Anaesthesia Trolley
- Size | 660 x 505 x 1045mm
- Eight drawers on heavy duty telescopic channels.
- Working table shelf provided beneath the first two drawers.
- Foldable stainless steel top which provided extra working space.
- Three sides railing for the stainless steel top.
- Mounted on 100mm non rusting castors.
- Pre-treated and epoxy powder coated.
Oxygen Cylinder Trolley
1) Oxygen Cylinder Trolley, D-Type
- Size : 140cm height
- Tubular MS frame work fitted with wheel 125mm dia.
- Pretreated and epoxy powder coated.
2) Oxygen Cylinder Trolley, B-Type
- Size : 106cm height.
- Tubular MS frame work fitted with two wheel 10cm dia.
- Pretreated and epoxy powder coated.
Medicine Trolley With Four Drawers – I
- Medicine Trolley Overall approx. Sizes : 76L x 46W x 81H cms
- Frame work of MS Tubular/Square pipe.
- Mounted on 10cms castors,
- Two SS shelves with guard railing on both shelves
- Two MS drawers under the each shelf.
- Pretreated and epoxy powder coated.
Medicine Trolley With Four Drawers – II
- Overall approx. Sizes : 76 L x 46 W x 81 H cms
- Frame work of Stainless Steel Tubular/square pipe.
- Mounted on 10cms castors
- Two SS shelves with three side railing on top shelf
- Two drawers under the each shelf
Instrument Trolley
- SS tubular pipe framework OR EPC tubular pipe framework.
- Mounted on 100mm diameter castor wheels, two with brakes.
- With two SS shelves with side railing.
- Dimensions (LXWXH) :Size 1: 600 x 450 x 810mm,Size 2: 760 x 450 x 810mm,Size 3: 900 x 500 x 900mm.
Dressing Trolley
- Stainless steel tubular frame work.
- Shelves and guard railing on both shelves.
- Trolley mounted on 10 cm DIA. swiveling castors with two brake
- Supply with SS bowl and bucket.
- Dimensions (LXWXH):Size 1: 600 x 450 x 820mm,Size 2: 760 x 450 x 820mm,Size 3: 900 x 500 x 900mm.
Medicine Trolley (With Two Drawers)
- SS square pipe framework
- Mounted on 100mm diameter castor wheels, two with brakes.
- With two SS shelves and two SS drawers below the top shelf.
- Dimensions (LXWXH): 760 x 460 x 810mm
E.C.G Trolley
- Overall approx dimension: 880 x 500 x 460.
- Tubular construction made of Stainless steel.
- Trolley mounted on four synthetic body twin wheel castors 100mm wheel dia two with brake & two without brake.
- Trolley has two shelves and one drawer on top.
