Description
Photo-therapy Unit Neonatal
Neonatal Photo therapy units are full featured NICU equipment to meet Neonatal critical care requirements for new-born baby those in need of jaundice treatment. Neonatal Photo therapy (blue light treatment) is the process of using blue light to eliminate bilirubin in the blood. Blue light is most effective for Photo therapy because Bilirubin is yellow and it strongly absorbs blue light.
Technical Specifications
| Phototherapy | High Bright Super Flux LED Based Unit |
| Lamps | High Bright LED lamps Specially made For phototherapy treatment. |
| LED life Time | energy saving specially made SMPS electronic driver with 30 W maximum at 100-240 V ~ 50/60 Hz |
| Power Supply | Two bright LED digital displays combination of Red and Green to continues monitor of baby temp and set temp, with easily switchable to °C to °F |
| Irradiance | maximum irradiance at Skin level up to
At 30 cm distance: >85, At 40 cm distance: >50,1 At 50 cm distance: >33,4 Spectral irradiance distribution – Peak: between 460–490nm |
| Effective surface | Treatment area 50 cm x 30 cm at 30 cm from the height from the light source |
| Timer | Digital timer for Total lamp usage and patient treatment exposure |
Physical Specifications
| Stand | Heavy duty mobile stand mounted on four antiskid castors with height adjustable facility |
| Source Box | Made with Fire Retardant Fiber, Lamp unit tilting facility up to 180°, Lamp unit dimensions L420 mm X W300 mm X H90 mm weight 4Kg ( only source unit) |
| Height adjustment | 1100 mm to 1500 mm from light source to floor |
| Baby Trolley | Detachable multipurpose baby trolley Mounted on anti-skid casters with Bottom Tray To keep Resuscitation items or Bottom surface Phototherapy unit. Baby Trolley Hight adjustable with spring arm with maximum highest position including stand 215 cm and lowest position 130 cm |
| Baby Tray | MS Powder Coated with four sides Clear Acrylic Panels, Front and Both Sides Collapsible with Tilting Facility, Clear Acrylic Base for under surface Phototherapy |
| Power | AC 240V, 50 Hz, 30W Maximum,
Fuse rating 2 Amps Overheat protection Power cut off for Noise level during normal operation: ≤20 dB(A) Ambient pressure 1,100 hPa to 700 hPa |
| Physical Dimensions | Phototherapy Stand |
| Overall dimensions | L500 mm X 600 mm X H1900 mm (at maximum height) |
| Footprint 550 mm x 600 mm Weight (Approximate) – 11 kg Operating temperature range – 18°C to 45°C Humidity range – 10% to 75% RH Transport / Storage Temperature range – 10°C to 60° |
|
Photo-therapy unit CFL Neonatal
- Phototherapy system for treatment of neonatal hyperbilirubinaenia.
- It is powered by a six – CEL module providing intense blue light. Unwanted heat is filtered and eliminated
- SLEEK and efficien ECONOMIC performance
CFL module
For the first time in the world, six lamps are used for speedy and effective treatment. The CFL’s provide blue light at ~18 µW/cm ²/nm. CFLs last five times longer than ordinary tube lights, requiring less frequent replacement. The CFL comes optionally with four blue and two white lamps for examination of the infant.
Focused blue light
Light from the CFL module is focused on the baby bed, avoiding scatter into the care-provider space.
Heat dissipation
Special vents are provided on the light unit to divert heat, avoiding undesirable warming of body.
Compatibility with other equipment
The tiltable light unit may be placed over any bed or incubator and in combination with a radiant warmer or another CFL unit for additional intensity. The height of the unit is adjustable, so that it is suitable for different bed heights. The T-Shaped base slides conveniently out of the way under other equipment.
Accessory
The CFL is provided with separately operated white lights. A chronometer is provided to monitor lamp usage. An additional chronometer may be used for management of treatment.
Intensive Care Warmer Neonatal
Neonatal Resuscitation equipment history inbuilt LED Phototherapy attached made with hi quality unique FRR (Fire Retardant Resin) design for ultimate safety from fire and electric shocks. Radiant Warmers are full featured NICU equipment to meet Neonatal critical care requirements for new-born baby those in need of temperature maintenance
Technical Specifications
| Technology | WARMER Microprocessor based servo controlled electronic controller.
PHOTOTHERAPY Top surface Inbuilt LED phototherapy with digital timer for both total lamp usage and patient exposure |
| Mode | Skin, Air and Manual Control. |
| Temperature | Setting from 19°C to 39°C with heater power bar graph indication. |
| Display | Two bright LED digital displays combination of Red and Green to continues monitor of baby temp and set temp, with easily switchable to °C to °F |
| LCD Screen | Bright backlight LCD screen with full information of both Baby and Air mode along with alarm indication massages. |
| Safety | Independent Hi temp cut off with Hi temp sensor at 39°C |
| Apgar Timer | Can be used as a stop watch to measure heart rate and as a APGAR timer in labour ward |
| Alarms | Audio and Visual indications for Baby Probe Failure, Air Probe Failure, Heater Failure,1°C high, 1°C low Hi temp cut off, System failure Power fail indication |
| Skin Probe | Used latest technology hi sensitivity skin sensor to maintain uniform temperature |
| Air Sensor | Hi sensitivity air sensor used in air mode to maintain uniform temperature all over the baby tray with high accuracy of ± 0.5°C |
| Manual Mode | Heater power can be fixed manually with increments of 20% to 100% with Heater power bar graph indication |
| Heater | German make ceramic heater with parabolic reflector to maintain uniform temp across the baby bed (Optional quartz filament heater) |
| Phototherapy | High bright super flux LED Based Unit, LED lamps specially made for Phototherapy treatment, LED total life time fifty thousand usage Hours |
| Treatment | Maximum irradiance at Skin level upto 30μw/cm2/nm at 420 at 490nm |
| Examination Lamp | Latest power saving high bright LED observation lamp for procedures with adjustable facility to focus on required area during procedures |
| Main Unit | Made with high quality FRR Fibre with high quality polyurethane painting for long lasting life with extra safety from electric shocks and corrosion |
| Baby Tray | Made with high quality FRR [Fire Retardant Resin] grade fiber material for extra safety from electric shocks and corrosion, Newly designed oval shape baby tray with three sides collapsible clear acrylic panels. Head up & down tilting facility for baby tray, Clear acrylic base for under surface phototherapy with X –Ray cassette compartment |
| Source Unit | Latest design swivel type source unit with German make ceramic heater fixed in a parabolic reflector to maintain uniform temperature all over the baby tray, easy rotatable either side to take bed side X-ray and during procedures |
| Monitor Tray | Side monitor tray provision to keep Monitor or Pulse Oximeter |
| IV Stand | Side IV pole to mount multiple Syringe or Infusion pumps with adjustable stainless steel IV inner |
| Bottom Tray | To keep Resuscitation items or Bottom surface Phototherapy unit |
| Base | Mounted on imported anti-skid casters with locking facility |
| Power | AC 240V, 50 Hz, 1000W Maximum, Fuse rating 6 Amps |
| Dimensions | Baby bed -800 (L) X 700 (W) mm oval shape Mattress -800 (L) X 700(W) mm Main unit – 1100(L) X 750 (W) X 1900 (H) Weight (Approximate) – 85 kg |
| Humidity range – 10% to 75% RH Transport / Storage Temperature range – 10°C to 60° Optional: bottom surface phototherapy unit |
|
Physical Specifications
- Inbuilt Slow Suction unit for neonate use, operated from the front panel
- Baby bassinet of the unit equipped with baby weighing scale
- Integrated CPAP System and Inbuild Pulse oximeter for SpO2, heart pulse rate.
- Inbuilt blender for controlling the level of Oxygen concentration from 21% to 60% with medical air compressor
- Oxygen analyzer to monitor O2 level within acrylic Oxygen Hood.
- Provision to fix two Oxygen Cylinder 10 liters with flowmeter at the back of Unit.
- Height adjustable system by foot switch.
- Base of the units is equipped with three drawers
Incubator Servo Controlled Infant Care
- Care of child with incubator
- Baby Warmer
- Infant Incubator
- Neonatal Equipment
Bassinet Trolley
Luxurious infant Bed specially designed for Infant Care in Hospital and Nursing Homes
- Clear polycarbonate bassinet to secure clear visibility for observer constantly
- Trendelenburg and reverse Trendelenburg by gas spring, 0-14°. Height adjustable by gas spring, 640 ~ 950 mm.
- Infant Bed is mounted on 100mm Swivel castors with locking facility, double castors for smooth rotating and silent transportation.
- Bassinet Tub is made of transparent polycarbonate, dimensions: 92cm x 57cm
- Bed Height is adjustable 64 ~ 94cm by smooth gas spring
- Tub dimensions L 79.5 × W 46.5 × H 22–29 cm with Mattress Size L 65 cm x W 36cm x H 3 cm
- Trendelenburg/Anti-Trendelenburg Position up to +14°/-14°
- Maximum Working Load: 20kg
- Color available light pink and blue
Incubator Transport
• Light weight and easily transportable
• Flexible design, can suit any ambulance.
• Expandability (integrated with ventilator, compressor and other monitors)
• Easily sliding infant bed.
• User friendly control panel offers strain viewing.
• Electrically operated suction module.
• Separate infant temperature probe.
• Acrylic infant hood with parts for infant access and portals for other tubings.
• IV pole.
• Examination lamp.
• Houses a 3 ltr O2 cylinder.
• Reduced noise and vibration inside infant crib
| Temperature Module
Probe………………….Thermistor probe Heater element……Encapsulated heater with fins. Probe Calibration……Not Required Range………………….25° C to 40° C Accuracy…………….. ± 0.2° C Accuracy of probe inter changeability…………. ± 0.2° C Resolution………….. 0.1° C Voltage………………….220 V to 240V at 50/60Hz Battery backup………………….3 hrs. |
HEATER:
Single element CE approved ceramic heater placed in a parabolic reflector.Heater output control range in manual mode: 0 to 100% |
| Operating environment
Operating temperature …………-10 to +60° CStorage temperature……………..-25 to 60° COperating humidity……………….0 to 95% RH |
|
| Oxygen Supply
Incorporates a 3 ltr water capacity oxygen cylinder with pin index.Auxillary cylinder 10 ltrs water capacity (optional) |
Infant bed dimension
Length…………….. 700mm Width………………. 300mm Height……………… 35mm |
| Electrical Suction (Optional)
Maximun Suction…………….. 400mm HgVacuum gauge range………. 0-760mm Hg |
Alarms
Power down alarms (more than 10 min.)System failure.Heater failure.Power failure (Optional)Battery low (Optional) Probe failure |
| Canopy dimension
Length…………….. 800mm Width………………. 430mm Height……………… 400mm |
Coating
Epoxy powder coated body for scratch protection and rust prevention. Polyurethane painted baby bed and air path for easy cleanability.Conform to IEC 601 safety standard for medical equipment. |
| Control unit dimension
Length…………….. 850mm Width………………. 450mm Height………………160mm |
Trolley Dimension
Height………………..1000mm Width…………………500mm Length……………….650mm |

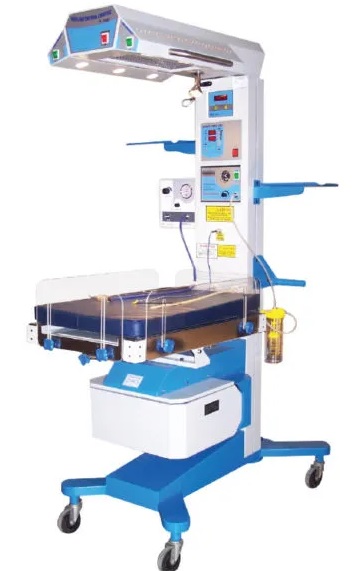

Resuscitation System
We believe that a warmer design should take into account both the science and art of the thermal regulation. To provide the most efficient use of heat we select the appropriate wattage, use the best material for heating element and design the reflectors for maximum effectiveness. The art involves designing the unit for optimum functionality. It is an equation we have worked hard to perfect.
Neonatal resuscitation units are commonly used as open care incubator in the delivery rooms, Intensive care units & operation theaters. They must combine heat control, Resuscitation, Phototherapy unit, space for monitoring systems and complete accessibility to the infant with an optimum medical procedural capability.
THE ELECTRONIC CONTROLLER:
- The controller is based on micro computerized system.
- Large bright displays are easy to monitor & for viewing from a distance.
- Double digital display system provided to measure the infant temperature and to set the required temperature.
- Feather touch keys provided for easy operation.
- Bar graph LED system provided to indicate the heater output.
- Temperature measured in °C
- Manual control system provided.
- Fault indication with alarms for Baby probe failure, 1°C temperature high, 1°C temperature low.
- High temperature cut-off & Power failure.
BABY PROBE:
Baby probe is made of highly sensitive sensor. The probe is interchangeable & field calibration taken care of by software. The probe is made up of silicon sheathed cable, which allows easy cleaning.
THERMAL CARE:
Special CE approved 750W ceramic heater is used to ensure fail safe heating and to provide maximum effectiveness. The chance of breakage of the heater is minimum. The heater can be easily cleaned. To ensure proper heating of the mattress. we match our ceramic heating element to the size of the warmer bed. Our specially designed parabolic reflector focuses the heat, minimize scatter and achieves superior thermal performance.
APGAR TIMER:
The Digital Apgar timer is switched on at the moment of birth of the baby and an acoustic alarm will sound after 1.5, 10, 15 and 20 minutes, remainding to examine the new born according to the Apgar scheme.
PATIENT BED: The large patient bed is adjustable to trendelenburg and fowler position. The Acrylic sidewalls can be positioned upward or downward.
X-RAY CASSETTE TRAY: The Neonatal Resuscitation Unit heater box swivels away from bed to make room for an X-ray unit. Convenient tray assists you to achieve accurate X-rays without disturbing the infant.
OBSERVATION LAMP: A Halogen based observation light facilitates to focus the light on any area of the bed.
RESUSCITATOR (OPTIONAL): Neonatal Resuscitation allows the resuscitation of the distressed newborns in delivery room or in case of emergency. Reanimation is preformed with positive pressure to the mask or endotracheal tube with manual control and free expiration. The minimum and maximum pressure values can be preset and are clearly indicated on the manometer. The Resuscitation operates when connected to the air-oxygen mixer or through any other flow meter.
ELECTRICAL SLOW SUCTION (OPTIONAL): The slow suction unit is designed to work on latest diaphragm technology and results in being maintenance free and provides high performance. This vacuum level can be adjusted with the regulator. A vacuum gauge is provided to monitor the pressure. The suction collection jar is unbreakable and it can be easily removed and sterilized.
PHOTOTHERAPY UNIT (OPTIONAL): A halogen based phototherapy unit provided for hyperbilirubinaemia management. Three halogen lamps are fitted on either side of the overhead heater box. It is fitted in an angled position to focus the radiation on the Infant for maximum effectiveness.
BABY WEIGHING SCALE (OPTIONAL): A built in digital weighing scale allows you to measure the weight without disturbing the infant.
Physical parameters:
| Mattress : 780 mmLength: 490 mmWidth: 50 mmThickness: 920 mm
Working level from ground : 920 mm Maxium baby tray tilt on both sides continuously variable} : +/-8° Weight: 130 kg Castors: 100 mm with 2 brake wheels and 2 non-brake wheels |
HEATER:
Single element CE approved ceramic heater placed in a parabolic reflector.Heater output control range in manual mode: 0 to 100% |
|
ENVIRONMENTAL SPECIALTIONS: Operating temperature range: 20°C to 33°C Storage temperature range: -25°C to 60°C Operating Humidity range: 0-100% RH Note: Best result obtained in low convective environmental |
PHOTOTHERAPY UNIT:
Supply to each tamp: 12 V, 50 WIrradiance: 6-8 µW/cm2/nm at bed level |
|
ELECTRICAL SPECIFICATIONS: Electrical Supply: 230V ± 10% Power consumption with Heater at max. output}: 750W Power consumption with Heater, Photo therapy and observation lamp ON}: 1250W |
SUCTION CONTROL: Maximum suction: 200 mm of HgVacuum gauge range: 0-760 mm of Hg |
| OBSERVATION LIGHT:
Power required: 12 V, 50 W |
|
| ELECTRONICS:
Micro computerized system |
AUXILIARY OXYGEN OUTLET:
Oxygen flow control: 1-15 liter/minuteMaximum airway pressure: 55 cm water column |
| SKIN TEMPERATURE PROBE:
Range: 28°C to 38°CAccuracy: +/-0.2°C within range Resolution: 0.1°CProbe interchangeability: +/-0.2°C (Servo) |
ELECTRICAL SAFETY:
As per IEC 60601-1-2 for medical equipments |
