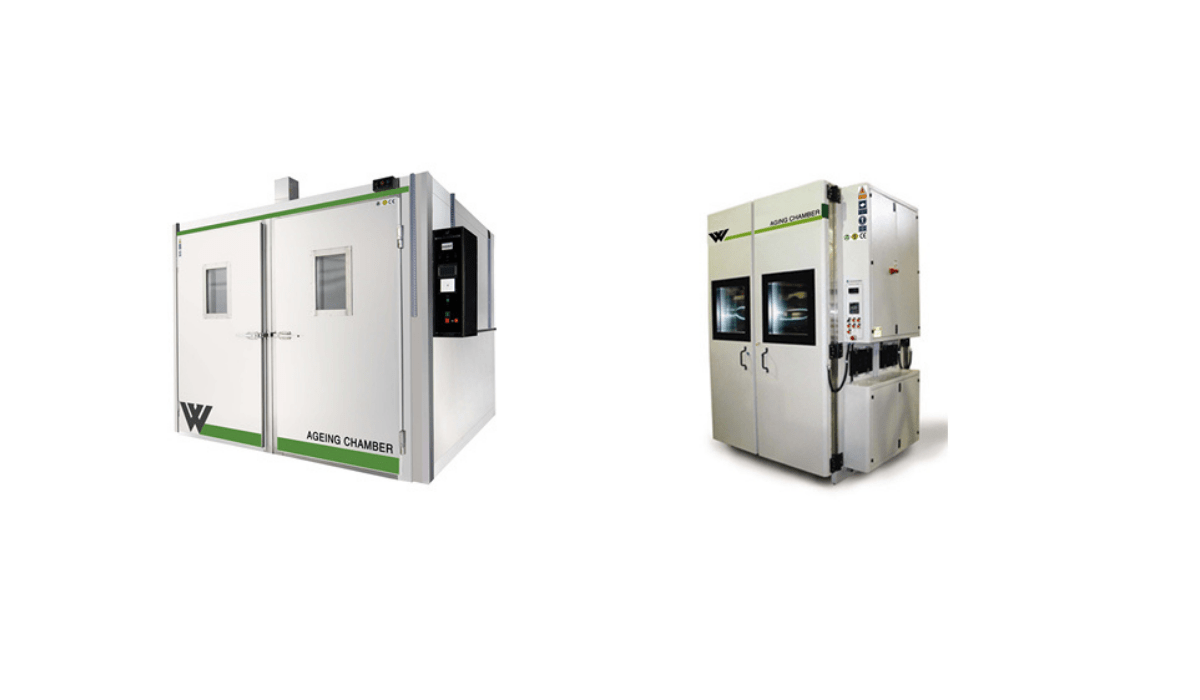

Ageing Test Chamber

Name: Ageing Test Chamber
SKU: 11557
Availability: InStock

Applications:

Note: Pictures shown are indicative only and the actual product may vary.

Select the chosen product and click Add To Quote

Ageing Test Chamber

Clear

SKU: N/A Category: Testing Equipments

Description

Reach In Ageing Chambers:

Ageing Chamber has been designed to simulate environmental condition to test the stability and reliability of products under stressed environment. Microprocessor based Ageing Test Chambers are made in accordance with the international testing standards. The equipments are NABL, NSF certified and CE approved. Ageing Chamber maintains 25% to 95 % RH. The Test Chamber is digitally controlled delivering accurate result under controlled environmental conditions. This chamber also known as Accelerated Ageing Test Chamber.

Features:

Excellent quality magnetic gum packing
Stainless steel chamber
Temperature Uniformity
Natural Air Flow
Special plates mounted on the side walls to absorb heat
Exterior painted with highly reflective, environmentally friendly, high temperature baked white powder coating.
HMI+PLC in one unit
Door open and Door close alarm system.
Inbuilt calibration system.
Separate Inbuilt printer for printing graphs(optional).
Colour touch panel
Aesthetically designed – Designed according to the standards and principles underlining industry’s aesthetic values.
Corrosion Resistant Interior and Exteriors – Corrosion resistant coatings like epoy coatings are applied inside and outside the chamber to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
Energy Efficient – chamber uses less energy to provide the same level of performance, comfort and convenience, thus making it energy conserving chamber.
CFC – Free Cooling – The air cooled refrigerator use CFC (chlorofluorocarbon)-free refrigerants those are ozone friendly and eco-friendly.
Sturdy Construction – chambers are built with robustness to withstand stress and strain, giving the chamber long life and ability to perform in extreme stress environments.
Low Maintenance – systems benefit inretaining proper functionality over long period of time.
Light Weight: Compact and superior materials ensure the chamber be light weight.

Specifications:

Chamber Dimension (WXHXD)mm : 900x850x600, 1100x1050x650, 1300x1250x700

Temperature Range	+5 ºC ambient to 300°C
Temperature Control	HMI+PLC controller
Temperature Uniformity at 20°c	±0.3 °C
Temperature Sensor	PT-100
Display	LCD
Number of Shelves	3(can be increased with increased in size)
Timer (Optional)	0-999 hour/minute
Humidity Range	25% to 95% RH
Humidity Control	± 3% RH
Humidity Sensor	Capacitive
Internal Construction	Stainless Steel
External Construction	Powder Coated Stainless steel
Power Supply	220V, 50/60Hz, Single Phase

Walk In Ageing Chamber

Features:

Excellent quality magnetic gum packing
Stainless steel chamber
Polyurethane Foam insulation between chambers to reduce thermal loss
Temperature Uniformity
Natural Air Flow
Special plates mounted on the side walls to absorb heat
Exterior painted with highly reflective, environmentally friendly, high temperature baked white powder coating.
Colour touch panel.
HMI+PLC in one unit
Door open and Door close alarm system.
Inbuilt calibration system.
Separate Inbuilt printer for printing graphs(optional).
Less use of Electrical and Mechanical Components on the Top and Bottom of Chamber – Provides easy maintenance of chamber, increases durability because of proper air circulation; cooling systems kept at bottom of the chamber to provide proper environment for compressor.
Heated Viewing Window – Heated viewing window allows viewing fog generated and proper viewing of the test sample.
Aesthetically designed – Designed according to the standards and principles underlining industry’s aesthetic values.
Corrosion Resistant interior and exteriors – Corrosion resistant coatings like epoy coatings are applied inside and outside the chamber to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
Energy Efficient – Chamber uses less energy to provide the same level of performance, comfort and convenience, thus making it energy conserving chamber.
CFC – free cooling – The air cooled refrigerator use CFC (chlorofluorocarbon)-free refrigerants those are ozone friendly and eco-friendly.
Sturdy Construction -Chambers are built with robustness to withstand stress and strain, giving the chamber long life and ability to perform in extreme stress environments.
Low Maintenance – systems benefit in retaining proper functionality over long period of time.
Light Weight: Compact and superior materials ensure the chamber be light weight.

Specifications:

Chamber Dimension (WXHXD)mm : 900x850x600, 1100x1050x650, 1300x1250x700

Temperature Range	+5 ºC ambient to 300°C
Temperature Control	HMI+PLC controller
Temperature Uniformity at 20°c	±0.3 °C
Temperature Sensor	PT-100
Display	LCD
Number of Shelves	3 (can be increased with increased in size)
Timer (Optional)	0-999 hour/minute
Humidity Range	25% to 95% RH
Humidity Control	± 3% RH
Humidity Sensor	Capacitive
Internal Construction	Stainless Steel
External Construction	Powder Coated Stainless steel
Power Supply	220V, 50/60Hz, Single Phase

Additional information

Ageing Test Chamber	Reach In Ageing Chambers, Walk In Ageing Chamber
