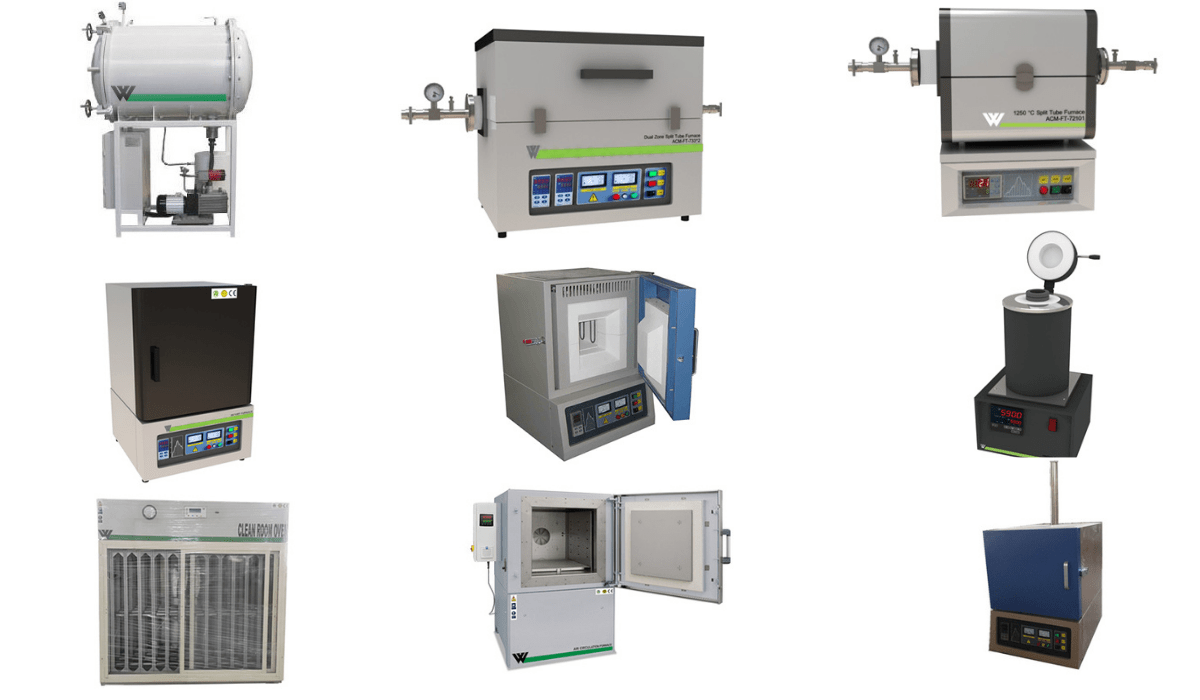

Furnaces

Ashing Furnace
Air Circulating Chamber Furnace
Clean Room Oven
High Temperature Furnace
Muffle Furnace
Melting Furnaces
Retort Furnace
Tube Furnace
Vacuum Furnace

Note: Pictures shown are indicative only and the actual product may vary.

Select the chosen product and click Add To Quote

Furnaces

Clear

SKU: N/A Category: Laboratory Equipment

Description

Ashing Furnace

One of the most common applications for laboratory furnaces is to heat combustible samples in order to analyse the ash residue. As there is no single solution for all requirements, a range of furnaces with characteristics tailored to ashing and burn-off applications. The range of Ashing furnaces is designed specifically to provide optimum ashing conditions to ensure complete combustion of the sample.

Features:

The temperature control unit consists micro-processor based PID controller cum indicator. Benefits of using PID controller:
- Processing speed is high
- Provides flexibility to alter the system by changing software.
- Compact in size.
- Operation and maintenance easier.
- Maintain precise values
Door options available:
- Flap door
- Lift door
- Front opening door
Heating from 2 sides by ceramic heating plates.
Air inlet and tall chimney give airflow of 5 to 6 changes per minute
Over temperature protection.
Solid state relays provided for low noise operation
Low chamber height holds airflow close to samples for optimum combustion.
Preheating of air before it enters the chamber gives maximum uniformity.
Large flow areas allow large number of samples.
Sample tray and holding handle.
PCRC sheet body – Powder coated steel body assures corrosion resistant furnace and allows working of chamber at high temperature applications.
Digital output – Target and Performance Output of the furnace operations are in digital format(digits) giving precise reading.
Precise Control of Environmental Parameters-The set/ programmable parameters of thefurnace are precise or have less deviation from original value,thus ensuring correct measurement.
Aesthetically designed-Designed according to the standards and principles underlining industry’s aesthetic values.
Corrosion Resistant interior and exteriors-Corrosion resistant coatings like epoxy coatings are applied inside and outside the furnace to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
Sturdy Construction – furnaces are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.

Specifications:

volume	3 Lt.
Maximum temperature	1100oC
External dimension (WXDXH)(mm)	375485800
internal dimension (WXDXH)(mm)	15025090
Height till top chimney	780 mm
Heat up time (mins)	140
Max power	2100W
Holding power	1270W
Weight	22kg
Thermocouple	K type
Temperature Controller	PID
Display	LCD/LED
Safety thermostats
Automatic temperature setting	Yes
Adjustable limits	Yes

volume	7 Lt.
Maximum temperature	1100oC
External dimension (WXDXH)(mm)	430740650
internal dimension (WXDXH)(mm)	17045590
Height till top chimney	1060 mm
Heat up time (mins)	155
Max power	4000W
Holding power	2300W
Weight	63kg
Thermocouple	K type
Temperature Controller	PID
Display	LCD/LED
Safety thermostats
Automatic temperature setting	Yes
Adjustable limits	Yes

volume	18 Lt.
Maximum temperature	1100oC
External dimension (WXDXH)(mm)	505675705
internal dimension (WXDXH)(mm)	196400235
Height till top chimney	990 mm
Heat up time (mins)	70
Max power	7080W
Holding power	3500W
Weight	70kg
Thermocouple	K type
Temperature Controller	PID
Display	LCD/LED
Safety thermostats
Automatic temperature setting	Yes
Adjustable limits	Yes

Applications:

Air Circulating Chamber Furnace

Air-circulation chamber furnaces with temperature range up to 850 °C, are mainly used for annealing, tempering, ageing, pre-heating, drying, shrinking, baking and testing. These air circulation chamber furnaces are available for maximum operating temperatures of 450 °C, 600 °C or 850 °C and are perfectly suited for demanding processes. Due to their robust and solid design even heavy loads can be heat treated. These furnaces are suited for use with baskets, pallets, and mobile furnace racks. All furnaces are available with electric or gas heating.

The temperature control unit consists micro-processor based PID controller cum indicator. Benefits of using PID controller:
- Processing speed is high
- Provides flexibility to alter the system by changing software.
- Compact in size.
- Operation and maintenance easier.
- Maintain precise values
Range of temperatures 450 °C, 600 °C or 850 °C.
Over temperature protection.
Swinging door hinged on the right.
High-grade heating elements with long service life.
High-grade insulation with Low energy consumption.
Heating from bottom sides and top.
PCRC sheet body – Powder coated steel body assures corrosion resistant furnace and allows working of chamber at high temperature applications.
Digital output – Target and Performance Output of the furnace operations are in digital format(digits) giving precise reading.
Precise Control of Environmental Parameters-The set/ programmable parameters of thefurnace are precise or have less deviation from original value,thus ensuring correct measurement.
Aesthetically designed-Designed according to the standards and principles underlining industry’s aesthetic values.
Corrosion Resistant interior and exteriors-Corrosion resistant coatings like epoxy coatings are applied inside and outside the furnace to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
Sturdy Construction – furnaces are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.

Specifications:

Temperature range: 450°C

Volume		30Lt.	60Lt.	120Lt.	250Lt.	500Lt.
External dimension mm	W	607	667	767	1002	1152
	D	1175	1250	1350	1636	1886
	H	1315	1400	1500	1860	2010
Internal dimension mm	W	290	350	450	500	750
	D	420	500	600	750	1000
	H	260	350	450	600	750
Thermocouple		K type	K type	K type	K type	K type
Power requirements		220/230V/ 50Hz	220/230V/50Hz	220/230V/50Hz	220/230V/50Hz	220/230V/50Hz
Phase		1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)
Connected load		As per dimension
Temperature Controller		PID
Display		LCD/LED
Safety thermostats
Automatic temperature setting		Yes
Adjustable limits		Yes

Temperature range: 650°C

Volume		15Lt.	30Lt.	60Lt.	120Lt.	250Lt.	500Lt.
External dimension mm	W	470	607	667	767	1002	1152
	D	845	1175	1250	1350	1636	1886
	H	460	1315	1400	1500	1860	2010
Internal dimension mm	W	295	290	350	450	500	750
	D	340	420	500	600	750	1000
	H	170	260	350	450	600	750
Thermocouple		K type	K type	K type	K type	K type	K type
Power requirements		220/230V/ 50Hz	220/230V/ 50Hz	220/230V/50Hz	220/230V/50Hz	220/230V/50Hz	220/230V/50Hz
Phase		1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)
Connected load		As per dimension
Temperature Controller		PID
Display		LCD/LED
Safety thermostats
Automatic temperature setting		Yes
Adjustable limits		Yes

Temperature range: 850°C

Volume		30Lt.	60Lt.	120Lt.	250Lt.	500Lt.
External dimension mm	W	607	667	767	1002	1152
	D	1175	1250	1350	1636	1886
	H	1315	1400	1500	1860	2010
Internal dimension mm	W	290	350	450	500	750
	D	420	500	600	750	1000
	H	260	350	450	600	750
Thermocouple		K type	K type	K type	K type	K type
Power requirements		220/230V/ 50Hz	220/230V/50Hz	220/230V/50Hz	220/230V/50Hz	220/230V/50Hz
Phase		1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)	1Ø or 3 Ø (as needed)
Connected load		As per dimension
Temperature Controller		PID
Display		LCD/LED
Safety thermostats
Automatic temperature setting		Yes
Adjustable limits		Yes

Applications:

Annealing
Tempering
Ageing
Pre-heating
Drying
Shrinking
Baking
Testing

Clean Room Oven

Clean room ovens are special ovens to work in clean room environments. Clean ovens are used specifically for heat treatment and applications for air requirements of class 5, class 100, class 1000 etc. Variety of high performance models to choose from which ensures automated operations and dedicated cleanliness even throughout temperature heating up and cooling operations. These ovens feature an exclusive air flow pattern that assures unsurpassed temperature control and uniformity and quick recovery times. A stainless steel blower, driven by constant speed induction motor, circulates air throughout the oven.

Features:

Temperature range up to 250oC.
Separated, insulated inner and outer surfaces
2 aluminum expansion racks (can be increased according to the model size)
Easily accessible interior for maintenance and cleaning.
Equipped with safety devices and high temperature protection.
Lockable doors with mobile updates.
Mobile updates.(optional)
Fixed or castor mounted(optional)
Class 5/10/100/1000 etc cleanliness levels: high levels of cleanliness areachieved by employing HEPA filters and a back to front horizontal laminar circulation system which produces uniform high temperature airflow.
Airtight structure ensures zero contamination.
Automated operation throughout heat treatment process: an automatic damper is provided for automation in all processes from temperature heat up to heat treatment and temperature pull-down.
Microprocessor based temperature controller.
Temperature chart recorder/printer for printing graphs(optional)
An automatic over temperature alarm ensures your samples are always protected.
RS 232/485 interface.(optional)
Universal Digital Data Recorder system (optional)
HMI+ PLC for temperature control, data recording (optional)

Specifications:

Working sizes

Volume (Lt)	Internal dimension (W X H X D)mm	External dimension (W X H X D)mm	Max. power consumption (W)
30	310310310	46065670	1000
68	470310470	62065820	1500
81	457503356	508890414	2000
121	470550470	620925820	2000
170	470770470	6201145820	2500
178	580530580	77012801025	3280
380	5801130580	77018801025	5120
678	8001130750	103018801210	5600

Customizable sizes are also available.

Temperature range	Ambient to +250°C
Temperature uniformity	±1.5°C at +100°C
	±3.0°C at +250°C
Heat-Up Time (Ambient to 250°C)	60 min.(customizable)
Sensor thermocouple	Type K and Type J/PT – 100
Types of thermometer	Bimetallic/Hydraulic
Filter	HEPA filter (ULPA filter optional)
Shelves per Unit	Min 2 (number increased in large capacity models)
Display	LCD
Controller	Nano technology based ergonomic controller
Nominal voltage	HMI+PLC controller (optional)
Frequency	230 V,3 PHASE
Frequency	50/ 60 Hz

Customizable sizes are also available

Applications:

Components processing
Annealing
Conditioning
Electronic burn in\
Preheating process
Drying
Curing

High Temperature Furnace

The high temperature furnace ranges comprises of temperatures 1700°C and 1800°C. Our furnaces meet the highest standards for quality, energy efficiency, and performance. Standard as well as customized solutions are available to meet the requirement of different individuals.

Features:

High quality molybdenum silicide heating element.
The temperature control unit consists micro-processor based PID controller cum indicator. Benefits of using PID controller:
- Processing speed is high
- Provides flexibility to alter the system by changing software.
- Compact in size.
- Operation and maintenance easier.
- Maintain precise values
Over temperature protection.
PCRC sheet body – Powder coated steel body assures corrosion resistant furnace and allows working of chamber at high temperature applications.
Digital output – Target and Performance Output of the furnace operations are in digital format(digits) giving precise reading.
Precise Control of Environmental Parameters-The set/ programmable parameters of thefurnace are precise or have less deviation from original value,thus ensuring correct measurement.
Aesthetically designed-Designed according to the standards and principles underlining industry’s aesthetic values.
Corrosion Resistant interior and exteriors-Corrosion resistant coatings like epoxy coatings are applied inside and outside the furnace to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
Sturdy Construction- furnaces are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.

Specifications:

Chamber size(DxWxH)mm	Temperature
150x150x150mm	1700,1800°C
200x150x150mm	1700,1800°C
200x200x200mm	1700,1800°C
300x200x200mm	1700,1800°C
300x250x250mm	1700,1800°C
400x300x300mm	1700,1800°C
400x350x350	1700,1800°C
400x400x400	1700,1800oC
500x500x500	1700,1800oC

Heating element	Molybdenum silicide
Temperature accuracy	+/- 1oC
Power supply	230V/50Hz (1 phase ,3 phase as desired)
Connected Load	As per dimension
Thermocouple	B type
Temperature Controller	PID
Display	LCD/LED
Safety thermostats
Automatic temperature setting	Yes
Adjustable limits	Yes

Applications:

Muffle Furnace

These laboratory muffle furnace units are utilized in general purpose heating in laboratories, ashing tests on wool, rubber, fibers or fabrics, heat treatment requirements for gears and various research facilities in chemistry and physics. It have mainly three parts; electronic control unit, inner chamber and insulation. The furnace chamber is heated by electric resistance elements and is insulated with ceramic fiber insulation. The controller is located under the furnace chamber and is well insulated from the heat generated in the furnace chamber. A door safety switch removes power to the heating elements whenever the furnace door is opened. The temperature is controlled by one of three types of controllers.

Features:

The temperature control unit consists micro-processor based PID controller cum indicator. Benefits of using PID controller:
- Processing speed is high
- Provides flexibility to alter the system by changing software.
- Compact in size.
- Operation and maintenance easier.
- Maintain precise values
Door options available:
- Flap door
- Lift door
- Front opening door
Available with temperature ranges: 900-1800°C
Heating elements are embedded in the ceramic wall (ONLY UPTO TEMPERATURE OF 1200°C)
Exhaust air outlet at rear wall of the furnace.
Solid state relays provided for low noise protection.
Over temperature limiter.
PCRC sheet body – Powder coated steel body assures corrosion resistant furnace and allows working of chamber at high temperature applications.
Digital output – Target and Performance Output of the furnace operations are in digital format(digits) giving precise reading.
Precise Control of Environmental Parameters-The set/ programmable parameters of thefurnace are precise or have less deviation from original value,thus ensuring correct measurement.
Aesthetically designed-Designed according to the standards and principles underlining industry’s aesthetic values.
Corrosion Resistant interior and exteriors-Corrosion resistant coatings like epoxy coatings are applied inside and outside the furnace to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
Sturdy Construction- furnaces are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.

Technical Specifications:

Muffle furnace for temperature range: 900-1200°C (kanthal wire heating)

Working sizes (customizable)

Muffle size (DxWxH)mm	temperature
225x100x100	900,1100,1200°C
250x125x125	900,1100,1200°C
300x125x125	900,1100,1200°C
300x150x150	900,1100,1200°C
300x200x200	900,1100,1200°C
350x175x125	900,1100,1200°C
375x175x175	900,1100,1200°C
325x150x200	900,1100,1200°C
475x175x175	900,1100,1200°C

Heating element	Kanthal A-1
Temperature accuracy	+/- 1oC
Power supply	230V/50Hz (1 phase ,3 phase as desired)
Connected Load	As per dimension
Thermocouple	K type
Temperature Controller	PID
Display	LCD/LED
Safety thermostats
Automatic temperature setting	Yes
Adjustable limits	Yes

Muffle furnace for temperature range: 1300-1500oC(Silicon Carbide Rod heating)

Working sizes (customizable)

Muffle size (DxWxH) mm	temperature
225x100x100	1300,1400,1500°C
250x125x125	1300,1400,1500°C
300x125x125	1300,1400,1500°C
300x150x150	1300,1400,1500°C
300x200x200	1300,1400,1500°C
350x175x125	1300,1400,1500°C
375x175x175	1300,1400,1500°C
325x150x200	1300,1400,1500°C
475x175x175	1300,1400,1500°C

Heating element	Silicon Carbide Rod
Temperature accuracy	+/- 1oC
Power supply	230V/50Hz (1 phase ,3 phase as desired)
Connected Load	As per dimension
Thermocouple	S/R type
Temperature Controller	PID
Display	LCD/LED
Safety thermostats
Automatic temperature setting	Yes
Adjustable limits	Yes

Muffle furnace for temperature range: 1600-1800oC (Molybdenum Silicide heating)

Working sizes (customizable)

Chamber size(DxWxH)mm	Temperature
150x150x150mm	1600°C
200x150x150mm	1600°C
200x200x200mm	1600°C
300x200x200mm	1600°C
300x250x250mm	1600°C
400x300x300mm	1600°C

Chamber size(DxWxH)mm	Temperature
150x150x150mm	1700,1800°C
200x150x150mm	1700,1800°C
200x200x200mm	1700,1800°C
300x200x200mm	1700,1800°C
300x250x250mm	1700,1800°C
400x300x300mm	1700,1800°C
400x350x350	1700,1800°C
400x400x400	1700,1800°C
500x500x500	1700,1800°C

Heating element	Molybdenum Silicide rod
Temperature accuracy	+/- 1oC
Power supply	230V/50Hz (1 phase ,3 phase as desired)
Connected Load	As per dimension
Thermocouple	B type
Temperature Controller	PID
Display	LCD/LED
Safety thermostats
Automatic temperature setting	Yes
Adjustable limits	Yes

Applications:

Ignition tests
Gravimetric analysis
Heat treating steel parts and Gears
Heat treating Gears
Coal sampling
Quench testing
Organic and inorganic ashing
Research facilities in chemistry
Chemical analysis
Annealing loss determination
soils & aggregates cement Testing
Development of coatings and ceramics
Glass blowing lab
Rice laboratory
Plastic tensile strength test
Stoneware samples firing

Melting Furnaces

Compact melting furnaces for the melting of non-ferrous metals and alloys are one of a kind and have anumber of technical advantages. Designed as tabletop models, they can be used for many laboratory applications. The practical counter balanced hinge with shock absorbers and the spout on the front of the furnace make exact dosing easy when pouring the melt. The furnaces are available for furnace chamber temperatures of 1200°C. However we have the capacity to customize the furnace temperature and sizes as per individual requirement. The heat is applied through microprocessor based controller. They are used to melt ironand steel, copper, aluminium and precious metals. The advantage of the compact furnace is a clean, energy-efficient and well-controllable melting process compared to most other means of metal melting. Since no arc or combustion is used, the temperature of the material is no higher than required to melt it; this can prevent loss of valuable alloying elements. By increasing temperature the alloy melts. And after the required time the lid is opened and the melted metal is poured for future use.

Features:

The temperature control unit consists micro-processor based PID controller cum indicator. Benefits of using PID controller:
- Processing speed is high
- Provides flexibility to alter the system by changing software.
- Compact in size.
- Operation and maintenance easier.
- Maintain precise values
Maximum temperatures of 1200°C with melt temperatures of about 80-110°C lower.
Crucible with integrated pouring spout of iso graphite included.
Compact benchtop design.
Over temperature protection.
Simple emptying of crucible by titling system with gas damper.
Insulated with a hinged lid.
Observation hole for melt.
PCRC sheet body – Powder coated steel body assures corrosion resistant furnace and allows working of chamber at high temperature applications.
Digital output – Target and Performance Output of the furnace operations are in digital format(digits) giving precise reading.
Precise Control of Environmental Parameters-The set/ programmable parameters of thefurnace are precise or have less deviation from original value,thus ensuring correct measurement.
Aesthetically designed-Designed according to the standards and principles underlining industry’s aesthetic values.
Corrosion Resistant interior and exteriors-Corrosion resistant coatings like epoxy coatings are applied inside and outside the furnace to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
Sturdy Construction – furnaces are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.

Specifications:

Temperature range: 1200°C

Volume		2Lt.
Internal dimension	R	240 mm
	H	220 mm
Heating rate		<60 min to reach to 1000°C
Temperature accuracy		±2°C
Max power		1.5KW
Net weight		30 kg
Power requirements		220/230V/50Hz
Phase		1Ø or 3 Ø (as needed)
Temperature Controller		PID
Display		LCD/LED
Thermocouple		K type
Safety thermostats
Automatic temperature setting		Yes
Adjustable limits		Yes

Applications:

Features:

Outside heating with heating elements surrounding the retort
Additional door heater
Compact housing in frame design with removable stainless steel sheets
Welded charging supports in the retort or air-baffle box in the furnace with air circulation
Swivel door hinged on right side with open cooling water system
Port for vacuum pump for cold evacuation
The temperature control unit consists micro-processor based PID controller cum indicator. Benefits of using PID controller:
Processing speed is high
Provides flexibility to alter the system by changing software.
Compact in size.
Operation and maintenance easier.
Maintain precise values
Over temperature limiter.
PCRC sheet body – Powder coated steel body assures corrosion resistant furnace and allows working of chamber at high temperature applications.
Digital output – Target and Performance Output of the furnace operations are in digital format(digits) giving precise reading.
Precise Control of Environmental Parameters-The set/ programmable parameters of thefurnace are precise or have less deviation from original value,thus ensuring correct measurement.
Aesthetically designed-Designed according to the standards and principles underlining industry’s aesthetic values.
Corrosion Resistant interior and exteriors-Corrosion resistant coatings like epoxy coatings are applied inside and outside the furnace to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
Sturdy Construction- furnaces are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.

Technical Specifications:

Working sizes (customizable)

Muffle size (DxWxH)mm	Temperature
225x100x100	1100°C
250x125x125	1100°C
300x125x125	1100°C
300x150x150	1100°C
300x200x200	1100°C
350x175x125	1100°C
375x175x175	1100°C
325x150x200	1100°C
475x175x175	1100°C

Heating element	Kanthal A-1
Temperature accuracy	+/- 1oC
Power supply	230V/50Hz (1 phase ,3 phase as desired)
Connected Load	As per dimension
Thermocouple	K type
Temperature Controller	PID
Display	LCD/LED
Safety thermostats
Automatic temperature setting	Yes
Adjustable limits	Yes

Applications:

Annealing
Tempering
Soldering etc.

Tube Furnace

Tube furnaces are designed to carry out various chemical processes under high temperature controlled condition. The Tube Furnace facilitates more sophisticated metallurgical applications. Single Zone to multiple zone Tube furnaces can maintain high temperature value up to 1800°C.

Single Zone:

1250^OC Split Tube Furnace

Power	6 KW
Voltage	AC 208-240V Single Phase, 50/60 Hz
Max. Temperature	1250° C
Continuous Temperature	1200°C
Max. Heating Rate	≤ 10ºC /min
Tube Size and Materials	High purity mullite tube OD: 3.25” x ID: 2.88” x Length: 54”
Heating Zone length	880 mm ( single zone )
Constant temperature zone	500 mm (±2° C)
Temperature controller	PID automatic control with 30 steps programmable
Temperature Accuracy	± 1°C
Vacuum Seal	Two stainless steel flanges with vacuum gauge and valves
Fitting Ports	In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter. For supplying high pressure gas, you may replace the standard barbed hose fitting with the VCR Face Seal Fitting.0
Vacuum Level	10-2 torr by mechanical vacuum pump. 10-4 torr by molecular pump. Leak rate < 5 mtorr / min.
Heating Element	Fe-Cr-Al Alloy doped by Mo
Dimension	1100 X 450 x 670mm
Certificate	CE certified

1650^OC Vacuum Tube Furnace

Furnace structure	Double layer steel casing with air cooling. Two cooling fan inside to keep case temperature < 55oC 1800 grade fiber alumina casted in vacuum
Tube Materials	99.8%High purity Al2O3 Ceramic Tube
Tube Size	OD: 102mm; ID: 92 mm in diameter x 1000 mm length, 99.8% purity alumina tube included. Two fibrous ceramic tube blocks are included for blocking heat radiation from inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
Heating element	Super 1750 grade MoSi2 (30 x 330mm)
Max. Working Temperature:	1600°C (2912°F)
Normal Working Temperature:	800 -1550°C (2732°F)
Temperature Controller:	PID automatic control via SCR (Silicon Controlled Rectifier) power control, with 51 steps program.
Max. Heating / Cooling Rate:	5°C / min above 1200°C and 10°C/min below 1200°C
Heating Zone	457 mm ( 18″)
Constant Temperature Zone	150 mm (6″) (±1° C at 1600°C )
Vacuum seal kit	100 mm diameter stainless steel vacuum seal assembling with one vacuum gauge, two valves, and two porous ceramic blocks are included. For fast & better vacuum,we suggest you use KFD25 adaptor and stainless steel pipe , as well as digital vacuum gauge.
Fitting Ports	In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter For supplying high pressure gas, you may replace the standard barbed hose fitting with the VCR Face Seal Fitting.
TemperatureAccuracy:	±1° C
Input:	Single Phase, 220V AC, 50/60 Hz
Output:	Max. 5KW
Power cable & plug	10 feet length 10-3 AWG heavy duty UL approved power cable is included.Extra length cable can be ordered. Plug is not included. You can order from your local hardware store according to female plug in your lab
Dimension:	590 L x 490 W x 760 H mm
Certificate	CE certified

1750⁰C Vacuum Tube Furnace

the Chamber material & Size	High purity fibrous Alumina costing under vacuum Coating by high purity ZrO2 (1800 grade ) 200 x 200x 200 mm (8 x 8 x 8 inch), 8.4 Liters
Standard Working Temperature	1750°C ( continuous )
Temperature Control	PID automatic control via SCR ( Silicon Controlled Rectifier) power control, with 31 steps program.
Heating Rate	5°C / min
Temperature Accuracy	± 1°C
Heating Element	Kanthal Super-1800 Grade MoSi2 – 360mm L , 6pcs
Working Voltage	AC 220-240 V single Phase 50/60 Hz
Max. Power	6 KW (require > 40 Amp air breaker)
Power cable & plug	10 feet length AWG heavy duty UL approved power cable is included.Extra length cable can be ordered. Plug is not included. You can order from your local hardware store according to female plug in your lab
Max. Current	up to 45 A
Outside Size	550 x 540 x 620mm
Certificate	CE certified

Two Zone:

1100⁰C Vacuum Tube Furnace

Furnace structure	Double wall steel casing with forced air cooling. Two cooling fan inside to keep temperature of outside case < 70 ºC High purity alumina fibrous insulation for max energy saving One sliding rail to support flange to load sample at easy Two heating zone to achieve longer constant temperature zone or a certain temperature gradient.
Input voltage	220VAC Single phase
power	5500 W
Fused quartz tube size	8.5″ O.D x 8.2″ I.D x 40″ Length One quartz tube is included, and spare tube is available as option
Heating element	NiCrAl Resistance Wire
Working Temperature	Max. heating temperature: 1100°C Continuous working temperature: 400 -1000°C Max. heating rate: 10°C/min
Heating zone	Total heating zone length 600 mm (24″) Two zones: 300 mm + 300 mm (12″ per zone) Constant temperature zone: 300 mm (if three zones are in the same temperature)
Temperature controller	Two precision temperature controller with PID function and 30 segments program. One extra temperature monitor is built in to shutdown power when temperature out of control . K type thermocouple installed. Temperature accuracy: ±1°C Software and PC interface module is available at extra cost Optional: PC interface & software
Vacuum Flange and gas feedthrough ports	Vacuum sealed stainless steel flanges with double high temperature silicon O-ring are included to achieve high vacuum (Usually 10-2torr by mechanical pump and 10-4torr by molecular pump ). Vacuum pump is not included. Right-side flange is hinge-type and KF25 vacuum port. KF25 Vacuum Right-Angle Valve and 1.2 meter long KF-40 Flexible Stainless Steel Vacuum Hose are included. One 1/4″ diameter feedthrough port is in built. one flange to insert a thermocouple to calibrate furnace temperature. ( please order 36″ length x 1/4″dia K type thermal couple to insert the feedthrough at related product or click underlined ) One quartz block is included, which must put right end of tube to block heat radiation Left-side flange is installed on slide able table to make movement easy. There are five stainless steel feed though pipes and needle valve installed on the flanges to feed multi-CVD gases. 4 pcs quartz plate is built in left side.
Product dimension	Furnace: 660 L x 700 W x 1060 H mm Sliding Table: 350 mm L Note: You must put furnace and sliding table on flat surface. Must make good alignment between sliding flange and furnace ( We ship sliding table and furnace separately
Certificate	CE certified

1200⁰C Split Tube Furnace

Furnace structure	Double layer steel case with two cooling fan, which ensure low surface temperature. Energy saving high purity fibrous alumina liner and insulation. High purity Al2O3 coating.
Power	4 KW
Voltage	AC 208-240V Single Phase, 50/60 Hz , Power cord is included without plug.
Temperature range	100~1100° C (Continuous); 1200° C (<1 hour)
Max. Heating Rate	≤ 20° C /min
Tube Size	3.15″Dia. x 2.83″ I.D x 40″L fused quartz tube (80 OD x 72 ID x 1000L mm) Two fibrous ceramic tube blocks are included for blocking heat radiation from inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating) Quartz block (Optional) is ideal for more cleanliness and higher achievable vacuum.
Heating Zone Length	Two zones: each zone length 8″ (200 mm) Total 16″ (400 mm) heating zone
Temperature Controllers	Two Precision Digital Temperature Controller, and each has 30-segement programm with alarm and overheating protection. You can set up two zone at different temperature to create a thermal gradient for CVD deposition or you can set up two zone at same temperature to create a longer constant temperature zone ( about 250mm )
Temperature Accuracy	± 1° C
Heating Element	Fe-Cr-Al Alloy doped by Mo
Fitting Ports	On one end the flange has a valve, vacuum meter & 1/4″ feedthrough attached, and on the other end has a valve & KF-25 Vacuum port.
Dimension	590 x 380 x 520 mm
Warranty	One year (No warranty on quartz tubes)
Dimension after crating	45x45x35″
Certificate	CE Certificate

1700⁰C Tube Furnace

Dimension	360mm (L) x 320mm (W) x 600mm (H)
Weight	28Kg (not including vacuum pump)
Max. Operating Temp.	1200°C continuous 1250 °C ( for < 60 minutes )
Heating Rate	2-120°C
Heating Element	Fe-Cr-Al Alloy doped by Mo
Working Region	inside camber size: 100mm dia. X 140mm H Auto-lift and auto down sample tray. Ceramic holder included. Ceramic block (80mm H) and supporting plate are included
Power	1.6KW, 15A max.
Voltage	AC 110V or 220V 50/60Hz (Please select the voltage in the optional bar)
Vacuum	One oil-less vacuum pump is included. Vacuum Setting Value: 0 kpa ~ – 99kpa (20 Torr) Max
Temperature controller	Design your program on Color LCD Screen: Idle, dry, preheat, Ramp up, dwell, Cooling down, 6 segments are programmableVacuum: automatically control the vacuum on/off according to the user-defined value of temperature (vacuum start & stop temperature) and time (vacuum holding time)
Venting System	Gas inlet port Gas inlet port and filter have been installed on the left side of furnace.
Warranty	One year limited warranty (Consumable parts are not covered by the warranty
Certificate	CE certified

Three Zone

1100⁰C Three Zone CVD Tube Furnace

Furnace structure	Double wall steel casing with forced air cooling. Two cooling fan to keep temperature of outside case < 70 ºC High purity alumina fibrous insulation for max energy saving One sliding rail to support flange to load sample with ease Three heating zone to achieve longer constant temperature zone or a certain temperature gradient
Input voltage	220VAC Single phase
power	8kW
Fused quartz tube size	8.5″ O.D x 8.2″ I.D x 51″ Length One quartz tube is included, and spare tube is available as option
Heating element	NiCrAl Resistance Wire
Working Temperature	Max. heating temperature: 1100°C Continuous working temperature: 400 -1000°C Max. heating/cooling rate: 10°C/min
Heating zone	Total heating zone length 900 mm (36″) Three zones: 300 mm + 300 mm + 300mm (12″ per zone) Constant temperature zone: 500 mm (if three zones are in the same temperature)
Temperature controller	Three precision temperature controller with PID function and 30 segments programmable One extra temperature monitor is built in to shut down power when temperature out of control by accident Double K type thermal couple installed. Temperature accuracy: ±1°C Software and PC interface module is available at extra cost Optional: PC interface & software
Vacuum Flange and gas feedthrough ports	Vacuum sealed stainless steel flanges with double high temperature silicone O-ring are included to achieve high vacuum (Usually 10-2torr by mechanical pump and 10-4torr by molecular pump ). Vacuum pump is not included Right-side flange is hinge-type and KF25 vacuum port. KF25 Vacuum Right-Angle Valve and 1.2 meter long KF-40 Flexible Stainless Steel Vacuum Hose ( Bellows ), are included. One 1/4″ diameter feedthrough port is in built one flange for insert a thermal couple to calibrate furnace temperature. ( please order 36″ length x 1/4″dia K type thermal couple to insert the feedthrough) One quartz block is included, which is put at right end of tube to block heat radiation Left-side flange is installed on slideable table to make movement easy. There are five stainless steel feed though pipes and needle valve installed on the flanges to feed multi-CVD gases. 4 pcs quartz plate is built on left side flange
Product dimension	Furnace: 1300 L x 680 W x 920 H mm Sliding Table: 600mm L Note: You must put furnace and sliding table on flat surface. Must make good alignment between sliding flange and furnace ( We ship sliding table and furnace separately)
Certificate	CE certified

1200⁰C Three Zone Quartz Split Tube Furnace

Furnace structure	Three heating zones: (900mm, 36″ in total) Zone 1: 229mm (9″) Zone 2: 457mm (18.0″) Zone 3: 229 mm (9″) Max. 25″ (625 mm) long with ± 1°C accuracy if set three zones at the same temperature. Precision temperature controllers with 30 segment programm and ±1° C accuracy. Max. Working Temperature: 1200°C Continuous Working Temperature : 1100°C Heating Rate: ≤20°C /min
Power	AC 208-240V Single Phase, 50/60 Hz (40A breaker required). 7 KW Max. Powder cord is included without plug. CE certified
Processing Tubes	Two High purity Fused Quartz Tubes included Outside tube: 130mm O.D. x 122 mm I.D. x 1480 mm Inside tube: 102mm O.D. x 94 mm I.D. x 1540 mm
Vacuum sealed flanges	One pair of flange made of SS304, which seals tightly between tubes by two high temperature O-rings (10-2 by mechanical pump and 10-4 by molecular pump). The flange is built with water cooling jacket. When working temperature > 900°C it is required to use cooling water. One KF25 adapter is installed on left flange to connect to a vacuum pump. One stainless steel needle valve is installed on right flange
Optional	Copper Foil for Graphene Growth (150m length x 150mm width x 25um thickness)
Furnace Dimension	1030 x 430 x 580 mm ( not included flange and tube )
Certificate	CE Certified

1700⁰C Three Zone Alumina Tube Furnace

Furnace Structure	Double layer steel casing with air cooling. Two cooling fan inside to keep temperature of outside case < 55oC. High purity fibrous alumina insulation for Max, energy saving. Three independent heating zones via three precision temperature controllers.
Power	9 KW (75A air breaker required )
Voltage	AC 208-240V Single Phase, 50/60 Hz
Heating Zone	Three zones: total 25″ (630 mm) heating zone (included two refractory separators) Zone 1: 7.5″ (190 mm) heated by 4 pcs U type SiC Working temperature 800 – 1400°C Heating rate: 10°C/min Zone 2: 10″ (250 mm) heated by 6 pcs U type MoSi2 working temperature 800 – 1700°C Max. Heating rate: 5°C/min Zone 3: 7.5″ (190 mm) heated by 4 pcs U type SiC Working temperature 800 – 1400°C Max. Heating rate: 10°C/min
Tube Size and Flange	99.8% purity Alumina Tube 2-3/8″ ( 60mm) O.D.x 2-1/8″I.D. (54mm) x 48″ (1200mm) Length 60 mm stainless steel vacuum sealing flange with valve and meter is included Two porous ceramic blocks are included for protecting flange from heating radiation
Temperature controller	PID precision control by SCR 30 segments programmable for any temperature profile. Built in protection for overheated and broken thermal couple.
Temperature Accuracy	±1ºC
Power cable & plug {C} {C}	10 feet length 8-3 AWG heavy duty UL approve power cable is included Extra length cable can be ordered. Plug is not included. You can order from your local hardware store according to female plug in your lab
Vacuum pump	Heavy Duty Rotary Vane Vacuum Pump (7.8 CFM -240 L/m) with Two Stage Exhaust System installed inside the vacuum station. Vacuum pressure 10-2 Torr. ( 220V is available for outside USA) One KFD25 adaptor is installed to flange for connecting to vacuum pump. Stainless steel pipe (25mmDia x 1000mm length) is included for connecting to tube furnace withKFD25 adaptor and clamps.
Vacuum Gauge	CE certified vacuum meter with LED digital display with the range10-3torr, vacuum system reaches to 5×10-2 torr within 30 minutes pumping
Three Channel Gas mix and delivery system	Three gas flow-meters ( 4% accuracy FS) are installed inside mobile case which are able to monitor gases flowing rate (three different kinds of gases in total) 1) Compact direct read flow meter, 10-100 cc/min. 2) Compact direct read flow meter, 16-160 cc/min. 3) Compact direct read flow meter, 25-250 cc/min.One pressure meters is installed inside mobile cart which are able to monitor the pressure of mixing tank.4 stainless steel needle valves are installed on the mobile cartTwo gas flowing pipes are provided for immediately use (one pipe from two mixed gases and another is independent gas) Optional: in order to control gas delivery accurately, you may choose three channel gas delivery system controlled by precision digital mass flow meter at extra cost.
Dimension	Furnace: 863 L x 457 W x 711 H mm (34 L x 18 W x 28 H inch) Gas cart: 850 mm (L) x 600 mm (W) x 700 mm ( H)
Certificate	CE certified

Five Zone

1100⁰C Five Zone Split Tube Furnace

Furnace structure	Double layer steel case Energy saving high purity fibrous alumina insulation. Heating Element : 1300 ºC grade Fe-Cr-Al Alloy doped by Mo 32″length x 5.5″dia heating chamber with built in 5 thermal couples
Power & Voltage	AC 208-240V Single Phase, 50/60 Hz 8 KW Max. (50A breaker required) Powder cord is included without plug
Max. Temperature	1200 °C
Continuous Temperature	1100 °C
Max. Heating Rate	≤20 °C /min
Heating Zone	Five independent heating zones: each heating zone length 152 mm Total heating zone length: 811 mm, 32″ in total) Max. Constant temperature zone 25″ ( 635mm ) if 5 zone heated at same temperature ( within ±2oC)
Temperature Controllers	30-segment program Digital temperature Controllers are integrated in a separated unit with connection ports to power and thermal couple Built in protection from over-heat and broken thermocouple Temperature Accuracy : ±1 °C
Optional Processing Tube & Vacuum flange	The furnace can accept quartz or mullite tube with diameter 1″ – 5″ diameter and minimum length 1400mm ( 55″)
Dimension	1100 X 450 x 670mm
Certificate	CE Certified

1200^OC Five Zone Split Tube Furnace

Furnace structure	Double layer steel case with two cooling fan, which ensure low surface temperature.Energy saving high purity fibrous alumina insulation.
Power	8 KW
Voltage	AC 208-240V Single Phase, 50/60 Hz (40A breaker required) Powder cord is included without plug
Max. Temperature	1200 ºC
Continuous Temperature	1100 ºC
Max. Heating Rate	≤20 ºC /min
Tube Size and Flange	Standard: 80 mm O.D x 74 mm ID. x 1400mm L fused quartz tube included; Optional: 4″, 5″ diameter tube is available upon request at extra cost; Two fibrous ceramic tube blocks are included for blocking heat radiation from inside tube. Quartz block is ideal for more cleanliness and higher achievable vacuum.
Fitting Ports	In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please specify at time of order. For supplying high pressure gas, you may replace the standard barbed hose fitting with the VCR Face Seal Fitting, please specify at time of order.
Heating Zone Length	Five heating zones: Zone1: 152 mm Zone2: 152 mm Zone3: 152 mm Zone4: 152 mm Zone5: 152 mm Total heating zone length: 811 mm, 32″ in total)
Temperature Controllers	Digital Controllers, and each has 30-segement program. Built in protection from over-heat and broken thermocouple Five K type thermal couple Optional: you may order 5 sets of software & PC interface at the link below to achieve computer control at extra cost
Temperature Accuracy	±1 ºC
Heating Element	Fe-Cr-Al Alloy doped by Mo
Dimension	1100 X 450 x 670mm
Certificate	CE Certified

Seven Zone

1200⁰C Five Zone Split Tube Furnace

Furnace structure	Double layer steel case Energy saving high purity fibrous alumina insulation. Heating Element : 1300ºC grade Fe-Cr-Al Alloy doped by Mo 32″length x 5.5″dia heating chamber with 5 built in thermal couples
Power & Voltage	AC 208-240V Single Phase, 50/60 Hz 8 KW Max. (50A breaker required) Powder cord is included without plug
Max. Temperature	1200 °C
Continuous Temperature	1100 °C
Max. Heating Rate	≤20 °C /min
Heating Zone	Seven independent heating zones: each heating zone length 115 mm Total zone length: 811 mm, 32″ in total) Max. Constant temperature zone 28″ ( 635mm ) if 7 zone heated at same temperature ( within ± 2°C)
Temperature Controllers	Seven 30-segement programmable Digital temperature Controllers are integrated in a separated unit with connection ports to power and thermal couple Built in protection from over-heat and broken thermocouple Temperature Accuracy : ±1 °C
Optional Processing Tube	The furnace can accept quartz or mullite tube with diameter 1″ – 5″ diameter and minimum length 1400mm ( 55″)
Dimension	1100 X 450 x 670mm
Certificate	CE Certified

Applications

Material Research
Sintering
Baking
Annealing

Vacuum Furnace

Vacuum resistance furnace is widely used in the heat treatment of metallic material in coarse vacuum, in reducibility or protective atmosphere. It Can also be used for special heat treatment of materials such as carbon products in the development process of carbonation. It can heat materials, typically metals, to very high temperatures and carry out processes such as brazing, sintering and heat treatmentwith high consistency and low contamination. In a vacuum furnace the product in the furnace is surrounded by a vacuum. The absence of air or other gases prevents heat transfer with the product through convection and removes a source of contamination. The Furnace are designed to meet temperature & vacuum atmosphere requirements.

Features:

Uniform temperatures in the range 1100–1500°C (2000–2800°F)
Low contamination of the product by carbon, oxygen and other gases
Quick cooling (quenching) of product.
The temperature control unit consists micro-processor based PID controller cum indicator. Benefits of using PID controller:
- Processing speed is high
- Provides flexibility to alter the system by changing software.
- Compact in size.
- Operation and maintenance easier.
- Maintain precise values
Over temperature limiter.
Programmable Vacuum automatically control the vacuum on/off according to the user-defined value of temperature (vacuum start & stop temperature) and time (vacuum holding time).
PCRC Sheet Body – Powder coated steel body assures corrosion resistant furnace and allows working of chamber at high temperature applications.
Digital Output – Target and Performance Output of the furnace operations are in digital format(digits) giving precise reading.
Precise Control of Environmental Parameters -The set/ programmable parameters of thefurnace are precise or have less deviation from original value,thus ensuring correct measurement.
Aesthetically Designed -Designed according to the standards and principles underlining industry’s aesthetic values.
Corrosion Resistant Interior and Exteriors -Corrosion resistant coatings like epoxy coatings are applied inside and outside the furnace to prevent against degradation due to moisture, salt spray, oxidation or exposure to a variety of environmental or industrial chemicals/ corrosive agents.
Sturdy Construction-furnaces are built with robustness to withstand stress and strain, giving it long life and ability to perform in extreme stress environments.

Specifications:

Operating Temp	RT-1100°C	RT-1100°C	RT-1500°C	RT-1500°C
Temp Accuracy	±1°C	±1°C	±1°C	±1°C
Number of Temp region	1	1	1	1
Volume	3.3 L	8 L	3.3 L	8 L
Interior dimension (mm)	150×150×150 (W×H×D)	200×200×200 (W×H×D)	150×150×150 (W×H×D)	200×200×200 (W×H×D)
Heating elements	Kanthal wire	Kanthal wire	Mo-Si rods	Mo-Si rods
thermocople	K type	K type	Btype	Btype
Max power	3KW	7KW	4KW	8KW

Applications:

Additional information

Furnaces	Air Circulating Chamber Furnace, Ashing Furnace, Clean Room Oven, High Temperature Furnace, Melting Furnaces, Muffle Furnace, Retort Furnace, Tube Furnace, Vacuum Furnace

Reviews

There are no reviews yet.

Be the first to review “Furnaces”

Furnaces

Description

Additional information

Reviews

KEEP UPDATED

Visit LSP

Furnaces

Description

Additional information

Reviews

Related Products

Cold Rooms

Miscellaneous Equipments

Measuring Equipments

Lyophilizer

Moisture Measuring Meters

Water Purification Systems

Centrifuge

Microscopes

Laboratory Shaking Machines

Water Testing Equipments

Laboratory Balances

Freezers

KEEP UPDATED

Visit LSP
