Description
Kjeldahl Distillation Unit
Kjeldahl Units have a minimum of 3 mantles and a maximum of 6 mantles which are made of a knitted layer of glass fabric combined with flexible heating element, encased in Mild Steel housing. Over and above this layer of glass fabric accommodating the flexible heater, another layer of glass cloth is placed on the lower mantle held firmly by a circular aluminum ring. Temperature ranges form ambient to 350ºC controlled by a Sun Vic Energy Regulator with either a single control or individual controls, with corresponding indicating lamps.
The Digestion and Distillation combined units UNITS have the features of both Digestion and Distillation which are placed on a painted MS angle stand with their respective controls. Supplied without any glass parts. Works on 220/230 Volts Ac.
Micro Kjeldahl Distillation Unit
The equipment has a very heavy casted top made of high grade stainless steel block of grade SS-304 with room for heating 40 digestion tubes made of highly energy efficient borosilicate glass of 75 ml each. The suitable value heating element are made of high grade kanthal A-I non magnetic wire. These heaters are strategically placed throughout the chamber for uniform temperature distribution through the chamber. The outer casing of the equipment id made of thick PCRC sheet duly pre treated with primers for rust proofing and painted with attractive stove enamel paint or powder coated. The 75mm gap between the two walls is filled with mineral wool to have minimal thermal loss and maximum energy efficiency.
Temperature Information:
- Temperature Range : 50°C to 350°C
- Temperature is controlled through electronic solid state temperature controller cum indicator or micro processor based digital temperature controller cum indicator.
- The temperature is controlled with an efficiency of + 2% (Set Value)
- The control panel is fitted at the side of the equipment, it comprises of mains on/off switch, neon power indicator light, heater on/off indicator light, digital temperature controller cum indicator.

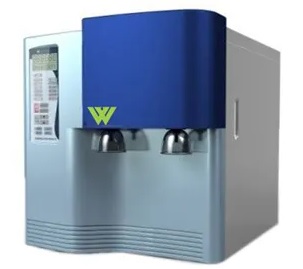

Ro System
Reverse Osmosis systems are designed and manufactured for dependable service, they can provide packaged water quality with output capacities ranging from 1000 LPH. These systems are ideal for small and medium-sized water stores or bottling operations. our systems will output water is in 10 to 30 PPM TDS range. The equipment required for these various stages can be purchased “stand-alone”, or separately, if needed. More usuallywe will supply an integrated, or “turnkey” system, in which the needed stages and equipment are pre-connected and tested.
